Luoyang Longmen Grottoes Rock-Cut Structure Monitoring
A Rock-Cut Structure Monitoring System case for Longmen Grottoes, focused on rock-mass fissure evolution, vibration response, displacement trend, weathering-related degradation, and nearby highway construction influence.
Project Type
Cultural Heritage Monitoring System
System Scale
East Hill grotto wall, West Hill Buddha area, entrance rock wall, burial-area rock wall, and long-term online monitoring platform
Data Output
rock fissure data, crack evolution trend, vibration response, displacement trend, weathering-related stability indicators, and alarm records
Engineering Value
How the system supported engineering decisions
The case is classified under Cultural Heritage Monitoring System instead of Civil Infrastructure Structural Monitoring.
The monitoring scope follows Rock-Cut Structure Monitoring terminology: rock-mass fissure evolution, weathering and structural degradation, vibration response, long-term stability, and human-activity influence.
The system configuration links sensors, acquisition hardware, TCP transmission, and PHM software into one RFQ-ready heritage monitoring package.
Monitoring Content
Monitoring scope and field constraints addressed by the deployment
Rock-mass fissure evolution monitoring was required above the grotto wall and around sensitive carved-stone areas.
Vibration response monitoring had to capture construction and human-activity influence without disrupting the protected site.
Long-term stability analysis needed displacement trend, weathering-related degradation indicators, and platform-based reporting.
System Configuration
Configured system architecture and data path
Field Devices
2D001 vibration sensors, crack gauges, displacement sensors, vibrating-wire channels, voltage channels, and protected field installation accessories
Communication Layer
DH5971N controller, vibrating-wire acquisition, voltage acquisition, TCP transmission module, and remote online data transfer
Central Platform
PHM / DL-SHM platform for rock fissure data, vibration response, displacement trend, long-term stability analysis, alarms, and reports
Case Visual Evidence
Source visuals and deployment references
Heritage monitoring system topology
Sensor, acquisition, communication, and software platform layers support online rock-cut heritage monitoring.
Long-term trend and warning platform
Trend outputs support fissure, vibration, displacement, stability, and alarm review for protected heritage sites.
Sensor Deployment
Sensor layout and measurement purpose

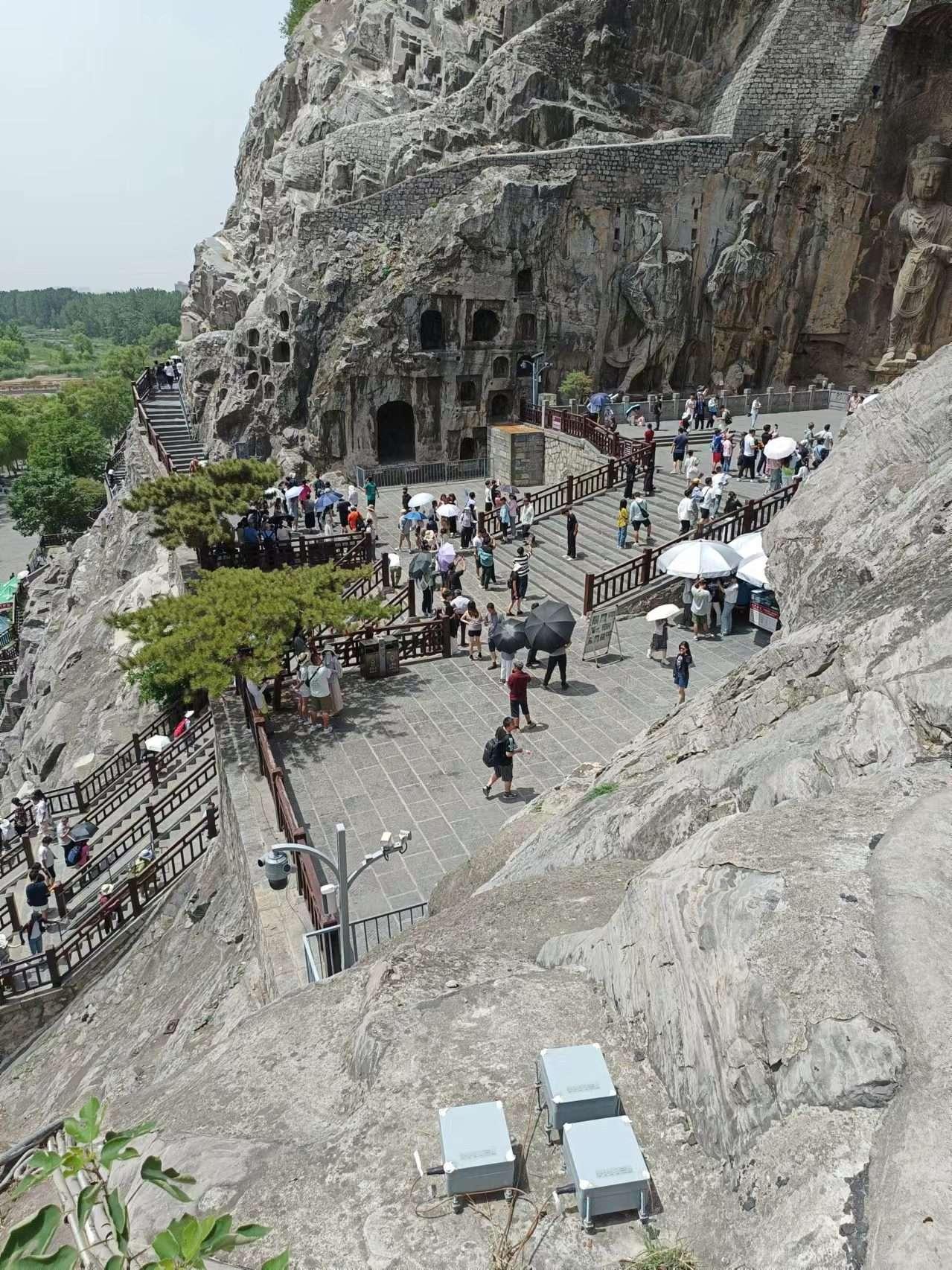

East Hill rock wall
2D001 vibration sensors and crack gauges
Monitor rock-mass fissure evolution and upper rock-layer vibration response
West Hill Buddha area
2D001 vibration sensors
Measure vibration response on both sides of the Buddha area
Entrance and burial-area rock wall
Displacement sensors and crack gauges
Track displacement trend and fissure change on sensitive rock-wall sections
Monitoring platform
DH5971N controller, vibrating-wire acquisition, voltage acquisition, PHM platform, and TCP transmission module
Provide online data acquisition, remote transmission, trend review, and heritage risk reporting
Data Analysis Results
Monitoring indicators and interpretation
Rock fissure data
fissure width and crack evolution trend
The system supports evaluation of rock-mass fissure development around the grotto structure.
Vibration data
rock-layer and carved-area vibration response
Dynamic response evidence helps assess construction, traffic, visitor, and environmental influence.
Displacement and stability trend
rock-wall displacement, long-term stability indicators, and platform alerts
Long-term trend outputs support Rock-Cut Structure Monitoring System decisions.
Engineering Credibility
Reliability, topology, and project validation
99.98%
target data availability
IP67/68
field protection classes
4G/Fiber
site transmission options
RFQ
project-based configuration
Measurement planning
Monitoring object, measurement range, sampling rate, and signal type guide project configuration.
Communication options
DL systems support project configurations using wired, wireless, GNSS, and gateway-based communication methods.
Documentation support
Datasheets and technical selection information are available upon request for RFQ preparation.
Product selection should be confirmed against site conditions, measurement points, installation environment, and expected data output.
Structured RFQ Path
Request path for Cultural Heritage Monitoring System Project
Step 1
Define Data Nodes
Sensor, wireless node, GNSS station, seismic unit, or DAQ field layer.
Step 2
Configure Network
Civil infrastructure, industrial equipment, heritage, seismic, or research monitoring chain.
Step 3
Build RFQ Scope
Asset type, measurement points, channels, sampling rate, communication, environment, and duration.
Step 4
Review Proposal
Receive system architecture, product configuration, data output, and engineering review structure.
Project Overview
Engineering context and monitoring scope
In March 2025, a long-term monitoring system was arranged for Longmen Grottoes to evaluate how nearby highway construction could affect the stone cave structures. East Hill and West Hill monitoring used vibration sensors, crack gauges, displacement sensors, acquisition equipment, TCP data transmission, and a PHM intelligent maintenance platform.
Client type
Heritage protection authority and engineering assessment institute
System scale
East Hill grotto wall, West Hill Buddha area, entrance rock wall, burial-area rock wall, and long-term online monitoring platform
Project type
Cultural Heritage Monitoring System
